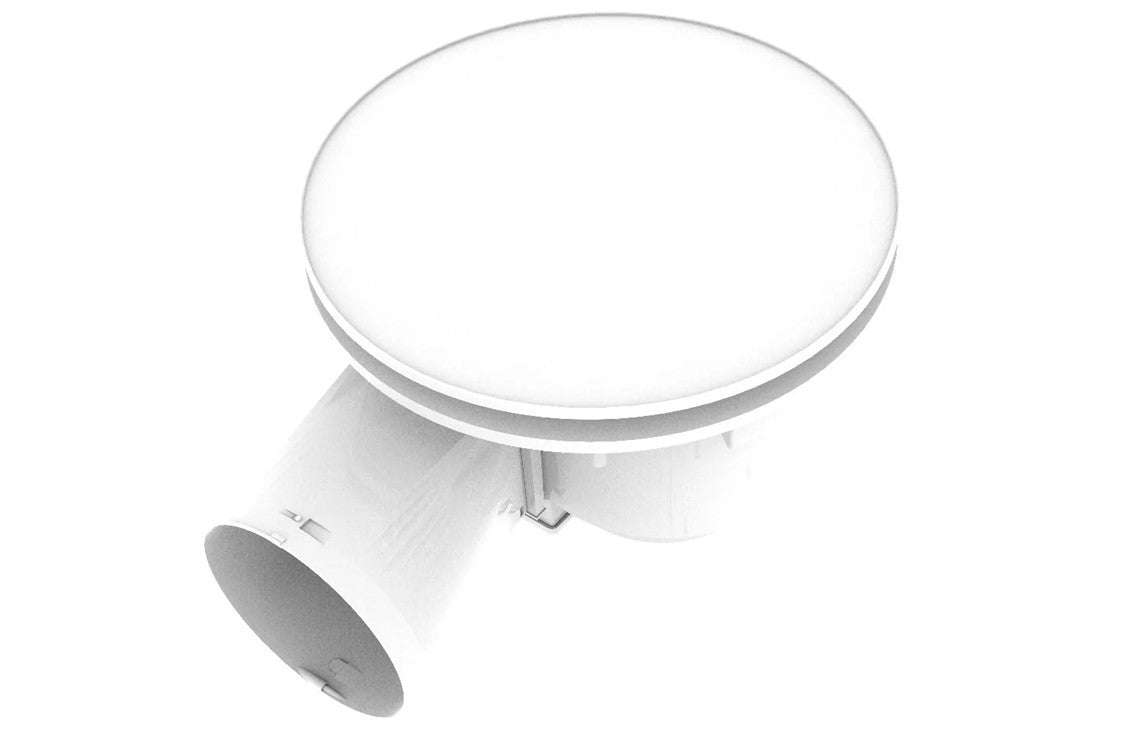

Ducted Ventflo Ceiling Fan In 200mm And 250mm

The Ducted Ventflo Ceiling Exhaust Fan is designed to fit a ceiling cavity with a minimum height of 210mm, and has a 125mm diameter duct outlet. The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors. Impeller housing design provide powerful air flow extraction Suitable for bathrooms, kitchens, laundries and toilets IP24 rated – can be installed directly above a shower Removable fascia for easy cleaning Easy plug-in installation  UPC 9332048029479 Airflow Extraction (m3/h) 280 Aluminium Flexi Ducting 125 (not included) Back Draught Flaps Yes Clearance Required above Unit (mm) 210 Cutout Size (mm) 240 Exhaust Capacity (l/s) 77 Exhaust Capacity (m3/h) 280 Fan Size (mm) 200 IP Rating IP24 Max. Ceiling Height (m) 2.4 Min. Ceiling Height (m) 2.1 Product Installation Can be installed directly above a shower Suitable for Wet/Steamy Area Yes Supply (Volts) 45 Area Suitability in Room with Shower 5.83  Installation Instructions and User Guide Product Specification Chart

$70.00
Return Delivery

Free 30-days Delivery Returns. Details

X

Notify me when Ducted Ventflo Ceiling Fan In 200mm And 250mm - 200mm becomes available.

The Ducted Ventflo Ceiling Exhaust Fan is designed to fit a ceiling cavity with a minimum height of 210mm, and has a 125mm diameter duct outlet.

The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors.

  • Impeller housing design provide powerful air flow extraction
  • Suitable for bathrooms, kitchens, laundries and toilets
  • IP24 rated – can be installed directly above a shower
  • Removable fascia for easy cleaning
  • Easy plug-in installation
  • UPC
    9332048029479
  • Airflow Extraction (m3/h)
    280
  • Aluminium Flexi Ducting
    125 (not included)
  • Back Draught Flaps
    Yes
  • Clearance Required above Unit (mm)
    210
  • Cutout Size (mm)
    240
  • Exhaust Capacity (l/s)
    77
  • Exhaust Capacity (m3/h)
    280
  • Fan Size (mm)
    200
  • IP Rating
    IP24
  • Max. Ceiling Height (m)
    2.4
  • Min. Ceiling Height (m)
    2.1
  • Product Installation
    Can be installed directly above a shower
  • Suitable for Wet/Steamy Area
    Yes
  • Supply (Volts)
    45
  • Area Suitability in Room with Shower
  •
